FM 90 - OUR LARGEST SYSTEM FOR POSTERS AND FRAMES!

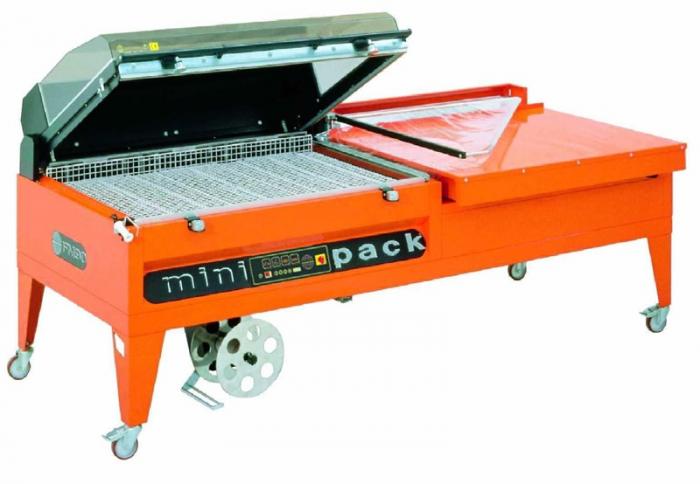

The FM 90 is a one step shrink wrapper that is ideal for large sized flat products such as picture frames and posters. Optimum ratio price/performances when compared to a L-Bar and shrink tunnel. Digital control with 6 programs Seal only & seal-shrink modes Adjustable chamber height Teflon coated sealing blade Flim waste winder Legs with locking casters Microperforators

  • Manual shrink wrapper
  • Steel manufactured line
  • 6 working programs available by the electronic control panel
  • 2 working possibilities: sealing only OR sealing + shrinking
  • Max output: 300 packs per hour

Do you need help choosing a machine?
Guide me

Typical Applications

Ideal for packaging large products (food or non-food) with high productivity and quality.

Specifications

  • Max output: 300 packs per hour
  • Sealing dimensions: 50" x 31.4" (1280mm x 800mm)
  • Maximum width of film roll: 39" (1000mm)
  • Maximum product height: 4.7" (119mm)
  • Working plate height: 35.8" (910mm)
  • Machine dimensions with closed hood: 110" x 50" x 46" (2800mm x 1280mm x 1170mm)
  • Machine weight: 1113 lbs. (505 kg)
  • Voltage: 220V - 3ph
  • Maximum power: 7.2 kW
