See our automatic tray sealers

The CiMatic GF Tray Sealing Machine is proudly made in Canada and has been designed to offer customers an automated system at an affordable price with a gas flush feature. The goal is to seal ready meal trays fast and effectively at speeds up to 20 per minute.

Tell us which food trays best suit your application from our selection below, and we will set the temperature, production speed, and pressure so that all you have to do is turn on the CiMatic and allow it to heat up. This automatic food packaging machine does all the work for you. All you have to do is place your delicious meals onto the conveyor, and the to-go containers will be hermetically sealed to ensure a leak-proof transportation of your product. The lidding film will be straight cut between each tray, giving your meal the product presentation you've always wanted.

The CiMatic GF meal packaging machine also allows for quick tray mold changes. This means that you can seal a variety of different styles and sizes of trays with this one food packing machine.

Watch the attached video to see the CiMatic in action and for a demonstration of the mold changes.

Unique features of the CiMatic GF :

• Gas Flush feature
• Food trays are transported using a single pallet design, no joints.
• Changing from one tray size to another is easy.
• Motor is 1/4 HP with inverter.
• Jog conveyor backward and forwards for easy setup
• Aluminium - Stainless Steel Build
• 2 Locking Castors
• Working Height: 35i
• Emergency STOP button on operator control panel – easily accessible from either side of the loading station
• Safety guards are in place

The following parameters can be changed by the operator:

 - Temperature
 - Sealing Pressure
 - Conveyor speed

Speed of sealing by tray series at a comfortable level for the operators.

 - 2171 Series - *20 Trays/min
 - 2187 Series - *20 Trays/min
 - 2208 Series - *14 Trays/min
 - 2227 Series - *15 Trays/min

• The speed is adjustable by the operator

The CiMatic Tray Sealing Machine, proudly made in Canada, has been designed to offer customers an automated system at an affordable price. The goal is to seal ready meal trays fast and effectively at speeds up to 20 per minute.

Tell us which food trays best suit your application from our selection below, and we will set the temperature, production speed, and pressure so that all you have to do is turn on the CiMatic and allow it to heat up. This automatic food packaging machine does all the work for you. All you have to do is place your delicious meals onto the conveyor, and the to-go containers will be hermetically sealed to ensure a leak-proof transportation of your product. The lidding film will be straight cut between each tray, giving your meal the product presentation you've always wanted.

The CiMatic meal packaging machine also allows for quick tray mold changes. This means that you can seal a variety of different styles and sizes of trays with this one food packing machine.

Watch the attached video to see the CiMatic in action and for a demonstration of the mold changes.

Unique features of the CiMatic :

• Food trays are transported using single pallet design, no joints.
• Changing from one tray size to another is easy.
• Motor is 1/4 HP with inverter.
• Jog conveyor backwards and forwards for easy setup
• Aluminium - Stainless Steel Build
• 2 Locking Castors
• Working Height: 35i
• Emergency STOP button on operator control panel – easily accessible from either side of the loading station
• Safety guards are in place

The following parameters can be changed by the operator:

 - Temperature
 - Sealing Pressure
 - Conveyor speed

Speed of sealing by tray series at a comfortable level for the operators.

 - 2171 Series - *20 Trays/min
 - 2187 Series - *20 Trays/min
 - 2208 Series - *14 Trays/min
 - 2227 Series - *15 Trays/min

• The speed is adjustable by the operator

The EASY model automatic vacuum tray sealer is economical and compact in size. It is designed for medium volume production levels and is simple to use and set up.

Sturdy and built in stainless steel, it is equipped with Teflon-coated sealing plates and a touch screen with 10 storable programs. This vacuum tray sealer with gas injection will optimize the shelf life of your products. It seals trays made of PP, PE, CPET, APET and aluminum.

The unit has been optimized to seal trays of various sizes (up to the family portion size 360 x 270 x 100 mm).

It is the ideal machine for prepared meals, meat, seafood, salads, and bigger containers.

The FUTURA is a small footprint, automatic tray sealing machine which offers all of the features of our larger systems at a fraction of the cost. It can seal meal trays made of PP, PE, CPET, APET and Aluminum. This machine is available in a 'seal only' mode or a modified atmosphere packaging (MAP vacuum packaging) mode. Robust, compact, easy to use and economical, the FUTURA is designed for medium levels of production.

Features:

• Rapid-change mould system, making it possible to switch from one tray style to another within a few minutes and giving you great sealing versatility.
• Teflon-coated sealing plates.
• Stainless steel and aluminum structure.
• Sensors for vacuum and gas.
• Die cutting of the lidding film to the contour of the tray, giving your finished product a nice clean look.
• As with any CiMa-Pak sealing system, all safety measures have been addressed in the high pressure, high temperature, and pinch zones.

Individual product programming – there are up to 10 different programs – is accessed through the operator interface well located on the front panel. The following parameters are modified through this Control Panel:

• Temperature
• Sealing time
• Dwell time
• Film advance for scrap rewind

• Please note that the output is dramatically reduced on the vacuum/gas models.

Ideal for any application where speed of tray sealing is important.

• Seal 1 tray at a time at up to 20 cycles per minute = 1200 per hour
• Seal 4 trays at a time at up to 20 cycles per minute = 4800 per hour

Normally used in the food industry but can also be used in the medical field for packaging of instruments.

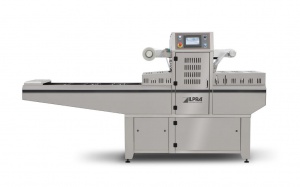

The FoodPack Speedy is a fully automatic in-line tray sealer designed for medium-volume food production. Combining robust construction, intuitive operation, and flexible packaging capabilities, the FoodPack Speedy delivers consistent, high-quality seals while helping manufacturers improve throughput and reduce operating costs.

Ideal for processors looking to transition from semi-automatic equipment to continuous production, the FoodPack Speedy supports a wide range of tray formats and packaging applications, making it suitable for ready meals, fresh meats, poultry, seafood, dairy products, produce, and convenience foods.

Designed for Productivity

Built for continuous production environments, the FoodPack Speedy combines automated tray handling with precise servo-controlled movements to maximize efficiency while maintaining package quality.

Key productivity features include:

• Automatic in-line operation
• Large loading area for various tray sizes
• Fast, repeatable sealing cycles
• Quick-change tooling for reduced downtime
• Recipe storage for rapid product changeovers
• Continuous film unwinding and scrap rewinding system

Whether running a single product or multiple SKUs throughout the day, the FoodPack Speedy minimizes setup time and keeps production moving efficiently.

User-Friendly Operation

The machine features an intuitive color touchscreen HMI that gives operators complete control over packaging parameters.

The control system allows users to:

• Save and recall packaging recipes
• Adjust operating parameters
• Monitor production
• Access machine diagnostics
• Simplify maintenance and troubleshooting

This intuitive interface reduces operator training time while ensuring repeatable packaging performance.

Built for Reliability

Constructed for demanding food production environments, the FoodPack Speedy delivers dependable performance with low maintenance requirements.

Benefits include:

• Heavy-duty stainless-steel construction
• Hygienic design for easy cleaning
• Reliable electromechanical operation
• Consistent sealing performance
• Reduced operating costs
• Long service life

Its durable design makes it an excellent investment for processors seeking dependable production day after day.

The FUTURA is a small footprint, automatic tray sealer machine which offers all of the features of our larger systems at a fraction of the cost. It can seal meal trays made of PP, PE, CPET, APET and Aluminum. This machine is available in a 'seal only' mode or a modified atmosphere packaging (MAP vacuum packaging) mode. Robust, compact, easy to use and economical, the FUTURA is designed for medium levels of production.

Features:

• Rapid-change mould system, making it possible to switch from one tray style to another within a few minutes and giving you great sealing versatility.
• Teflon-coated sealing plates.
• Stainless steel and aluminum structure.
• Sensors for vacuum and gas.
• Die cutting of the lidding film to the contour of the tray, giving your finished product a nice clean look.
• Possibility to use 2 chambers with different tools.
• As with any CiMa-Pak sealing system, all safety measures have been addressed in the high pressure, high temperature, and pinch zones.

Individual product programming – there are up to 10 different programs – is accessed through the operator interface well located on the front panel. The following parameters are modified through this Control Panel:

• Temperature
• Sealing time
• Dwell time
• Film advance for scrap rewind
