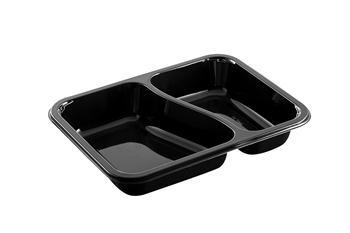

2208-2E: 2 compartment rectangular CPET food tray

The CiMotion is truly a tray sealing system like no other. Do not let its small size fool you. The CiMotion is made in Canada and is designed to seal meal trays and can be placed even in the smallest of facilities. The CiMotion runs on 110V, which adds to its versatility. But the real feature that puts our CiMotion into its' own category is the fact that it has Gas Flush capabilities.

All controls are located at the front of the CiMotion and the touch panel provides easy access to the sealing parameters, take-away food tray selection, and tool change. Our temperature controller individually controls the temperature of each sealing element thus creating the optimal sealing environment.

The real beauty of the CiMotion is the turntable operation. While one meal tray is being sealed another new tray is being loaded onto the turntable which is then rotated into the sealing chamber. This feature allows one operator as close to continuous operation as possible.

Tool changes from one tray style to another are quick and easy. Convenient access from the front allows the operator to make the switch in less than 5 minutes.

Trays that work with our CiMotion:

Rectangular: 1171 - 2171 - 2187 - 2200 - 2220 - 2208 - 2227 Circular: 0080 - 0095 - 0123 - 0124 - 0126 - 0160 Special: 0503 - 1085 - 2182 - CP4S

Incorporated safety features:

• Low compressed air supply alert
• Easily accessible power switch and E-Stop
• 2 button operation assures that operator’s hands are safe
• Position detector to ensure proper mould position before sealing
• Tamper proof panel/cover detector

The CiMatic GF Tray Sealing Machine is proudly made in Canada and has been designed to offer customers an automated system at an affordable price with a gas flush feature. The goal is to seal ready meal trays fast and effectively at speeds up to 20 per minute.

Tell us which food trays best suit your application from our selection below, and we will set the temperature, production speed, and pressure so that all you have to do is turn on the CiMatic and allow it to heat up. This automatic food packaging machine does all the work for you. All you have to do is place your delicious meals onto the conveyor, and the to-go containers will be hermetically sealed to ensure a leak-proof transportation of your product. The lidding film will be straight cut between each tray, giving your meal the product presentation you've always wanted.

The CiMatic GF meal packaging machine also allows for quick tray mold changes. This means that you can seal a variety of different styles and sizes of trays with this one food packing machine.

Watch the attached video to see the CiMatic in action and for a demonstration of the mold changes.

Unique features of the CiMatic GF :

• Gas Flush feature
• Food trays are transported using a single pallet design, no joints.
• Changing from one tray size to another is easy.
• Motor is 1/4 HP with inverter.
• Jog conveyor backward and forwards for easy setup
• Aluminium - Stainless Steel Build
• 2 Locking Castors
• Working Height: 35i
• Emergency STOP button on operator control panel – easily accessible from either side of the loading station
• Safety guards are in place

The following parameters can be changed by the operator:

 - Temperature
 - Sealing Pressure
 - Conveyor speed

Speed of sealing by tray series at a comfortable level for the operators.

 - 2171 Series - *20 Trays/min
 - 2187 Series - *20 Trays/min
 - 2208 Series - *14 Trays/min
 - 2227 Series - *15 Trays/min

• The speed is adjustable by the operator

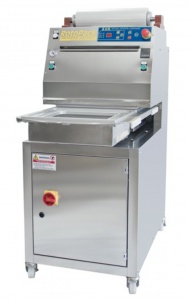

The SVR Turn is truly a most remarkable vacuum tray sealing machine. This semi-automatic modified atmosphere packaging (MAP) system is unique in the fact that the tooling where the trays sit rotates into the MAP vacuum/seal area. While one tray is being vacuum packaged the other tray is being removed and replaced with a new tray to be packaged. This process therefore speeds up your production.

As an added benefit, if you are currently using our standard SVR MAP Tray Sealer or our Easy MAP Tray Sealer the tooling is interchangeable. And, if you start with the SVR Turn you can always move the tooling to an Easy MAP Tray Sealer.

Features:

• Semi automatic vacuum/MAP sealing machine for preformed trays in PP, PE, PS, PET, AL etc. with manual rotary table that allows to load and unload trays while the machine performs the cycle
• Pressure sensor for vacuum and gas
• Teflon coated sealing plate
• Profile cutting to the tray size
• Digital temperature controller with PT 100 probe
• 10 storable programs (possibility to set sealing, vacuum, gas)
• Structure in stainless steel, aluminium and polythene
• Moulds made on tray samples for any shape
• Fast tool change

• Typically used to seal 50-150 Meals per Day
• Seal only
• Manual Operation
• Does not cut the film to the shape of the tray (Straight cut)

Looking for a reliable and affordable meal packaging solution? The CiMicro Tray Sealer is a manual tray sealer designed and made in Canada for small businesses, meal prep services, and test kitchens. This tray sealer ensures a secure, leak-proof seal in seconds, making it ideal for ready-made meal packaging and food storage.

Our CiMicro TableTop tray sealer is priced to suit start-up budgets. Included with the sealer is a frame to hold the CiMa-Pak tray from our Red M selection. Choose Red M in the tray selection filters to see the available trays.:

• CiMicro Tray Sealer – Manual operation, 110V power supply.
• 1x Sealing Frame – Compatible with our Red M tray collection.

Key Features:

• Leak-proof and professional sealing in seconds.
• Durable black or Evolve CPET trays – Freezer-to-oven safe (-40°C to 200°C).
• Perfect for small food businesses – Easy-to-use, minimal training required.
• Top quality and durable.

Do you have bigger needs? Higher volume? Take a look at our Compact manual tray sealing machines.

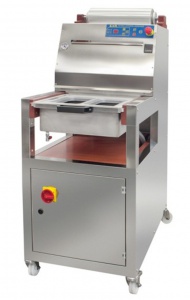

The SVR is a semi-automatic vacuum/MAP sealing machine for preformed trays in PP, PS, PET, AL, ect.

Important features to consider:

• Teflon coated sealing plate
• Profile cutting to the tray size
• Digital temperature controller with PT 100 probe
• 10 storable programs
• Structure made of stainless steel, aluminum and polythene
• Fast tool change
• Moulds made on tray samples for any shape

The EASY model automatic vacuum tray sealer is economical and compact in size. It is designed for medium volume production levels and is simple to use and set up.

Sturdy and built in stainless steel, it is equipped with Teflon-coated sealing plates and a touch screen with 10 storable programs. This vacuum tray sealer with gas injection will optimize the shelf life of your products. It seals trays made of PP, PE, CPET, APET and aluminum.

The unit has been optimized to seal trays of various sizes (up to the family portion size 360 x 270 x 100 mm).

It is the ideal machine for prepared meals, meat, seafood, salads, and bigger containers.

The FUTURA is a small footprint, automatic tray sealer machine which offers all of the features of our larger systems at a fraction of the cost. It can seal meal trays made of PP, PE, CPET, APET and Aluminum. This machine is available in a 'seal only' mode or a modified atmosphere packaging (MAP vacuum packaging) mode. Robust, compact, easy to use and economical, the FUTURA is designed for medium levels of production.

Features:

• Rapid-change mould system, making it possible to switch from one tray style to another within a few minutes and giving you great sealing versatility.
• Teflon-coated sealing plates.
• Stainless steel and aluminum structure.
• Sensors for vacuum and gas.
• Die cutting of the lidding film to the contour of the tray, giving your finished product a nice clean look.
• Possibility to use 2 chambers with different tools.
• As with any CiMa-Pak sealing system, all safety measures have been addressed in the high pressure, high temperature, and pinch zones.

Individual product programming – there are up to 10 different programs – is accessed through the operator interface well located on the front panel. The following parameters are modified through this Control Panel:

• Temperature
• Sealing time
• Dwell time
• Film advance for scrap rewind

The FUTURA is a small footprint, automatic tray sealing machine which offers all of the features of our larger systems at a fraction of the cost. It can seal meal trays made of PP, PE, CPET, APET and Aluminum. This machine is available in a 'seal only' mode or a modified atmosphere packaging (MAP vacuum packaging) mode. Robust, compact, easy to use and economical, the FUTURA is designed for medium levels of production.

Features:

• Rapid-change mould system, making it possible to switch from one tray style to another within a few minutes and giving you great sealing versatility.
• Teflon-coated sealing plates.
• Stainless steel and aluminum structure.
• Sensors for vacuum and gas.
• Die cutting of the lidding film to the contour of the tray, giving your finished product a nice clean look.
• As with any CiMa-Pak sealing system, all safety measures have been addressed in the high pressure, high temperature, and pinch zones.

Individual product programming – there are up to 10 different programs – is accessed through the operator interface well located on the front panel. The following parameters are modified through this Control Panel:

• Temperature
• Sealing time
• Dwell time
• Film advance for scrap rewind

• Please note that the output is dramatically reduced on the vacuum/gas models.

Ideal for any application where speed of tray sealing is important.

• Seal 1 tray at a time at up to 20 cycles per minute = 1200 per hour
• Seal 4 trays at a time at up to 20 cycles per minute = 4800 per hour

Normally used in the food industry but can also be used in the medical field for packaging of instruments.

• Typically used to seal 400-600 Meals per Day
• Seal only
• Manual Operation
• Holds 3 Rolls of Film
• Seals 1/2 pan food service tray size (2325)
• Does not cut the film to the shape of the tray (Straight cut)

The COMPACT MODEL III manual food tray sealer is an ideal option for packaging both cold and warm meals in either APET or CPET food trays. If the food tray styles that you want to package require three different widths of film (from food service size down to airline-sized meals), the COMPACT MODEL III is the food tray sealing machine to choose.

Each compartment of the meal tray is sealed separately with the COMPACT MODEL III tray sealer so you can be sure to avoid any redistribution of food during delivery. The trays are sealed to be leak-proof and work to keep your product fresh longer. Delivery and carrying home becomes easier for your customers.

The COMPACT MODEL III

• Holds three rolls of sealing film of different widths at a time. Each roll is available to pull and seal at any time.
• Maximum tray size: 12.8" x 10.4" x 5.1" (325 x 264 x 130mm)
• Smallest tray size: 6.7" x 3.85" x 1.3" (170 x 98 x 34mm) (Tray 1171-1B)
• Seals the tray in 2 seconds

This semi-automatic tray sealing machine is a tabletop model with die cut features. Very compact, the RAPIDA PLUS is a drawer style food tray sealer that seals and cuts the film around the food tray with a pneumatic piston. As you push in the drawer holding your meal-filled trays, the sealing film is automatically drawn over the trays and the machine does the rest of the sealing for you. When you remove the tray, peel away the excess film that has been die cut around the contour of the tray. This machine is designed to ensure that each compartment of the tray is sealed separately to ensure that no food is redistributed during delivery.

Many sealing frames (sealing moulds) are available with the RAPIDA PLUS, giving this tray sealing machine the versatility to seal meals of all shapes and sizes. Each mould can be purchased separately to fit with the trays you wish to seal. The temperature and sealing time are regulated to allow for the sealing of different types of film and trays.

Ideal for:

• Kosher meals (ask about our double packaging)
• Salads or vegetable combinations
• Prepared meal packaging for display in grocery or specialty stores
• Catering and buffet meal packaging
• Bulk packaging of food items such as pizzas, waffle dough, etc.
• Retail packaging

• Reheat prepared meals sealed in CPET food trays in the microwave or regular oven.

• Typically used to seal 400-600 Meals per Day
• Seal only
• Manual Operation
• Holds 2 Rolls of Film
• Does not cut the film to the shape of the tray (Straight cut)

The COMPACT MODEL II food tray sealer is an ideal option for packaging both cold and warm meals in either APET or CPET plastic to-go containers. If the food tray styles that you want to use require two different widths of film, this is the tray sealer to choose.

Each compartment of the meal container is sealed separately with the COMPACT MODEL II tray sealing machine so you can be sure to avoid any redistribution of food during delivery. As an added bonus, the food trays are sealed to be leak-proof and work to keep your product fresh longer. Delivery and carrying home is made easy for you and your customers with this food packaging system.

Versatility in packaging at its best, you can change from one style or size of tray to another in 2 seconds.

The COMPACT MODEL II MANUAL TRAY SEALER

• Holds two rolls of film of different widths at a time. Each roll is available to pull and seal at any time.
• Maximum tray size: 10.1" x 9.4" x 3.50" (256 x 238 x 89 mm)
• Seals the tray in 2 seconds

• Typically used to seal 400-600 Meals per Day
• Seal only
• Manual Operation
• Holds 1 Roll of Film
• Does not cut the film to the shape of the tray (Straight cut)

The CLASSIC model food tray sealer is an ideal option for packaging both cold and warm meals in either APET or CPET trays. If your tray selection requires only one width of sealing film then this is the sealer to choose.

Each compartment of the food tray is sealed separately with the CLASSIC tray sealer, so you can be sure to avoid any redistribution of food during delivery. As a bonus, the food trays are sealed to be leak-proof and work to keep your product fresh longer. Delivery and carrying home are easy.

Versatility in packaging at its best, you can change from one tray style to another in 2 seconds.

The CLASSIC

• Seals APET, CPET and PP trays in 2 seconds
• Holds one roll of film at a time
• Maximum tray size: 11.4 x 10 x 3.5 inches (289 x 254 x 89 mm)
