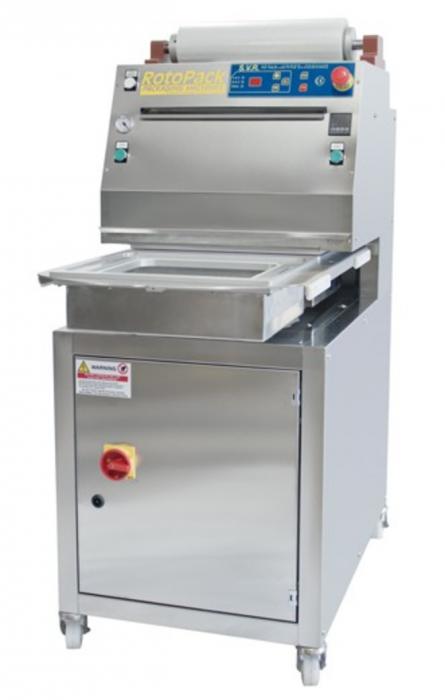

SVR TURN ROTARY MAP - Semi-Automatic Vacuum Tray Sealer
The SVR Turn is truly a most remarkable vacuum tray sealing machine. This semi-automatic modified atmosphere packaging (MAP) system is unique in the fact that the tooling where the trays sit rotates into the MAP vacuum/seal area. While one tray is being vacuum packaged the other tray is being removed and replaced with a new tray to be packaged. This process therefore speeds up your production.
As an added benefit, if you are currently using our standard SVR MAP Tray Sealer or our Easy MAP Tray Sealer the tooling is interchangeable. And, if you start with the SVR Turn you can always move the tooling to an Easy MAP Tray Sealer.
Features:
- Semi automatic vacuum/MAP sealing machine for preformed trays in PP, PE, PS, PET, AL etc. with manual rotary table that allows to load and unload trays while the machine performs the cycle
- Pressure sensor for vacuum and gas
- Teflon coated sealing plate
- Profile cutting to the tray size
- Digital temperature controller with PT 100 probe
- 10 storable programs (possibility to set sealing, vacuum, gas)
- Structure in stainless steel, aluminium and polythene
- Moulds made on tray samples for any shape
- Fast tool change
Our newest video on the SVR Turn shows how this tray sealer increases your productivity. While the trays are being vacuumed, gas flushed and sealed in one position, the second position is where the finished product is removed and the new trays to be sealed are placed.<br /><br /><br /><br /> The SVR Turn works with any of the following trays: CPET, PP or APET<br /><br /><br /><br /> Temperature, pressure and time are all adjustable on this system.<br /><br /><br /><br /> An additional benefit of the SVR Turn is the ability to easily change from one tray style to another within minutes.
Typical Applications
Maximum Tray Dimensions*:
1 Tray – 13.750” x 10.600” (350mm x 270mm) 2 Trays – 6.750” x 10.600” (172mm x 270mm) 4 Trays – 6.700” x 5.250” (170mm x 132mm) 6 Trays – 5.10” x 4.13” (130mm x 105mm)
*Please do not hesitate in contacting CiMa-Pak for any special request when it comes to your meal trays.
Options
- Special vacuum pump for high oxygen gas
- Photocell for printed film
- Printer (Pneumatic) for expiry date and batch number
Specifications
- Machine Dimensions: 22” x 49” x 54” (570 x 1250 x 1360 mm)
- Weight: 375 lbs. (170 Kg.)
- Power: 220-240 Volt
- Amperage: 10 A
- Vacuum Pump: 25 m3
- Compressed Air: 85 PSI
- Film Width: 15” (400 mm)
- Maximum Tray Dimension: 13.750” x 10.5” x 4.0” (350 x 270 x 100 mm*)
- Productivity – Vac:Gas/Seal Only: 4/6 cycles
*Optional height available up to 4.7" (120 mm) for an additional charge
