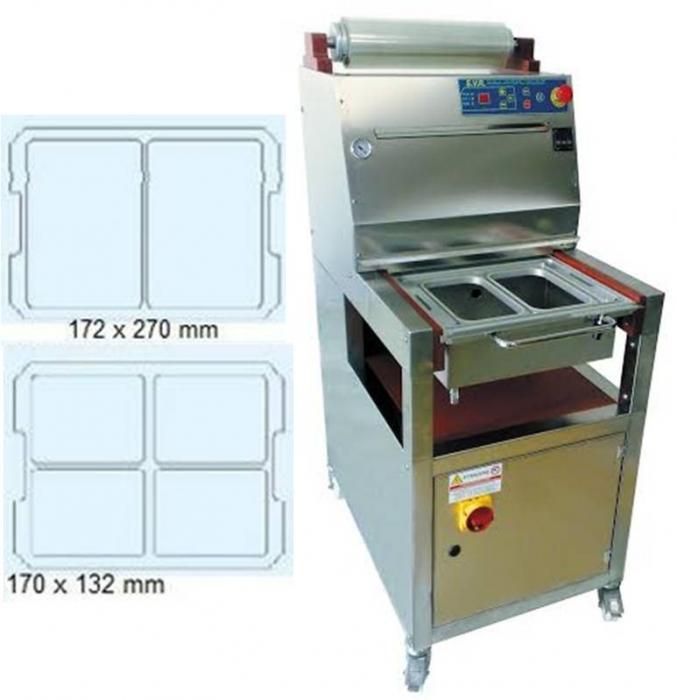

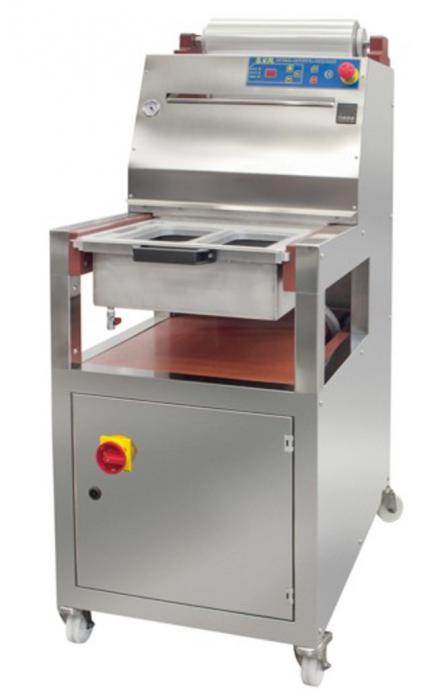

SVR - Vacuum Tray Sealer
The SVR is a semi-automatic vacuum/MAP sealing machine for preformed trays in PP, PS, PET, AL, ect.
Important features to consider:
- Teflon coated sealing plate
- Profile cutting to the tray size
- Digital temperature controller with PT 100 probe
- 10 storable programs
- Structure made of stainless steel, aluminum and polythene
- Fast tool change
- Moulds made on tray samples for any shape
This short clip shows how the Sealing/Diecut Frame are changed out on a SVM Vacuum Tray Sealer. The change out takes just a couple of minutes at max. However, if the sealing frame is still warm protective gear is required.
This video shows our SVR Basic MAP Tray Sealer with the diecut and auto drawer opening optional features. The cycle time on this particular product (vacuum, gas flush, seal and diecut the excess film) is approximately 11 seconds.
This video shows our SVR Turn MAP Tray Sealer. This particular unit has the automatic trim rewinder and is a faster unit when compared to our SVR Basic. The fact that you are able to remove the finished tray and get your next tray into position speeds up the complete process. There is a minimum amount of wait time for the operator.
This is a quick video showing how we set up our SVR Vacuum Tray Sealer.
Typical Applications
The SVR semi-automatic modified atmosphere tray sealer is usually used to package ready-meals, meats and fish, vegetables, etc.
Options
- Version 'only sealing' (mod. SPR)
- Larger version to seal trays up to 16.1" x 13.4" x 4.7" / 410 x 340 x 120 mm.
- Special vacuum pump for high oxygen gas
- Automatic drawer injection/ejection
- Vacuum sensor
- Inside compressor
- Photocell for printed film
Specifications
- Machine dimensions: 580 x 850 x 1400mm
- Weight: 150 kg / 330.7 lbs.
- Power: 230 V - 50/60 Hz
- Electric consumption: 2.5 KW
- Vacuum pump: 25 m³
- Compressed Air 85 PSI
- Film width: 15.7" / 400 mm
- Max. tray dimensions: 13.8" x 10.6" x 4.7" / 350 x 270 x 120 mm
