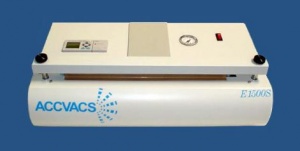

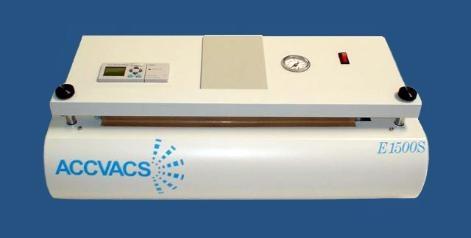

E-Series Impulse Sealer

The E-Series line of impulse sealers are simple, clean room quality heat sealers with advanced electronic and pneumatic controls. Available in seal lengths from 15 to 35 inches (380mm to 889mm)

  • Clean room compatible
  • Digital smart control
  • Backlit LCD display
  • Pressure gauge
  • No pinch safety jaw
  • Over heat protection
  • Electronic foot switch start
  • 1/4 inch (6mm) seal width

Do you need help choosing a machine?
Guide me

Typical Applications

The E-Series impulse sealers seals a variety of materials including polyethylene and laminates.

Options

Seals lengths: 15", 20", 25", 30" and 35" (380mm, 508mm, 635mm, 762mm and 889mm)

Specifications

Seal: 15” 20” 25” 30” 35” X 1/4” (380mm, 508mm, 635mm, 762mm, 889mm X 6mm) Air Consumption: 2 CFM @ 90 PSI Voltage: 120 VOLTS AC 7 amps. Dimensions: Seal + 6” L x 12” W x 8 1/2” H (152mm x 305mm x 216mm) Weight: 30, 34, 40, 44, 47 Lbs. (13.6 kg, 15.4 kg, 18.1 kg, 19.9 kg, 21.3 kg)
