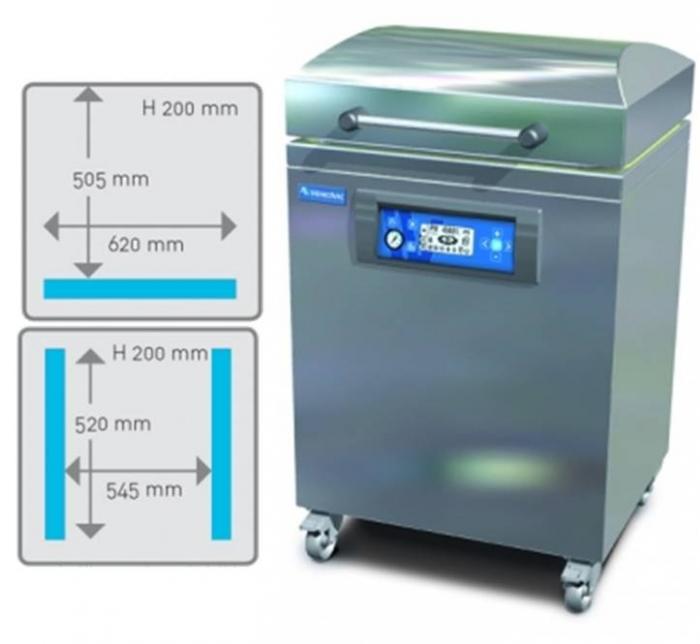

Mobile M4 - Heavy Duty Vacuum Chamber
This Mobile M4 vacuum chamber is a heavy duty, midsize, floor standing model with a stainless steel cover and flat working surface. Multiple sealbar configurations available.
CHAMBER DIMENSIONS: 23.6" x 19.6" x 7.8" (600 x 500 x 200 mm) SEAL LENGTH: 3 options L: 1 sealbar 24.4" (620mm) S&S: 2 sealbars 20.5" (520mm) L&S: 1 sealbar at 24.4" (620mm) and 1 sealbar at 19.7" (500mm)
Standard with double seal or trim seal. Standard with 40m³ vacuum pump.
Easy to clean, round corners Sealbeams and silicone are easily removable 10 Programs
Typical Applications
Popular in butcher shops, restaurants, hotel kitchens, hospitals, caterers and the food processing industry. The stainless steel cover is more resistant than the transparent lids of other vacuum chamber machine and allows for more industrial, heavy duty applications that persist for longer periods of time.
Options
- Sensor control: Sensor/H20
- Double seal OR Trim seal OR Seal 1-2
- Seal configuration options: L (single seal on length of machine), S&S (side by side), or L&S (length and side - perpendicular to each other)
- Gasflush: For packing fragile products, presentation and extending the shelf life of specific products.
- Vacuum Pump capacity: 63 m³
Specifications
- Chamber dimensions: 23.6" x 19.6" x 7.8" (600 x 500 x 200 mm)
- Seal length options: L: 24.4" (620mm) S&S: 2 x 20.5" (2 x 520mm) L&S: 1 bar 23.6"and 1 bar 19.7" (600mm and 500mm)
- Cycle time*: 20-40 sec.
- Voltage: 220-230 - 1 - 60Hz
- Vacuum pump: 63m³
- Machine dimensions: 28.3" x 31.7" x 46" (720 x 805 x 1170 mm)
- UL/CSA approved
*Cycle time is influenced by many factors such as product size and type, vacuum level, and whether or not the product is being gas flushed.
