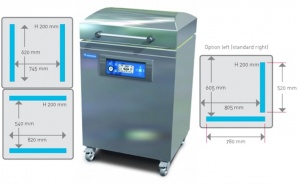

Mobile M5 - Heavy Duty Vacuum Chamber
This Mobile M5 vacuum chamber is a heavy duty, midsize, floor standing model with a stainless steel cover and flat working surface. Multiple sealbar configurations available.
CHAMBER DIMENSIONS:
31.5" x 19.7" x 7.8" (800 x 500 x 200 mm)
SEAL LENGTHS: 3 options
L&S: 1 sealbar 31.5" (800mm) and 1 sealbar 19.7" (500mm)
S&S: 2 sealbars 20.5" (520mm)
L&L: 2 sealbars 32.3" (820mm)
Standard with double seal or trim seal Standard with 63m³ vacuum pump.
Easy to clean, round corners Sealbeams and silicone are easily removable 10 Programs
Typical Applications
Popular in butcher shops, restaurants, hotel kitchens, hospitals, caterers and the food processing industry. The stainless steel cover is more resistant than the transparent lids of other vacuum chambers available in this line and thus allows for more industrial, heavy duty applications that persist for longer periods of time.
Options
- Sensor control: sensor/H20
- Modulated air return
- Gasflush: For packing fragile products, presentation and extending the shelf life of specific products.
- Double OR Trim OR seal 1-2
- Seal 1-2: Independent setting of seal wire and cut off wire for shrink-bags.
- Larger vacuum pump 100m³
Specifications
- Chamber Dimensions: 31.5" x 19.7" x 7.8" (800 x 500 x 200 mm)
Seal Lengths (3 options):
2 x 32.3" (820mm)
2 x 20.5" (2 x 520mm)
31.5" x 19.7" (800mm x 500mm)
Cycle Time*: 25-35 sec.
- Voltage: 220-230 - 1 - 60Hz
- Vacuum Pump: 63m³
- Machine Dimensions: 36.2" x 31.9" x 46" (920 x 810 x 1170 mm)
- UL/CSA approved
*Cycle time is influenced by many factors such as: product size and type, vacuum level and whether or not the product is being gas flushed.
