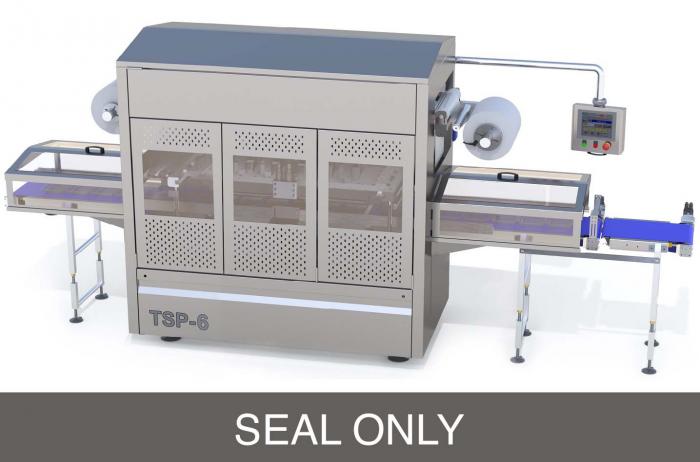

TSP-6 High Speed Medium Sized Tray Sealer Seal Only

TSP-6 High Speed Medium Sized Tray Sealer Seal Only

Like the smaller model TSP-4 and the larger model TSP-8, the TSP-6 is a high-speed tray sealer. The TSP-6 is really situated in a sweet spot for users who want high production numbers at a reasonable price. While this model is Seal Only it is also with the option MAP or SKIN process. And when it comes to tray sealers speed can be the ultimate deciding factor. If you have a production deadline to meet then speed can make or break your contract. Single lane production means that your product travels through the MAP/sealing section onto the exit conveyor and then, if available through a metal detector and labeler into the pack out section.

The 10” Touch Screen permits the operator (separate login per operator) to easily recall a previously stored program (up to 29 programs) or change the existing parameters of the program which is running. This means that at the beginning of a production run you can run at a slower speed to ensure that everything is running correctly then ramp up the cycle speed.

Equally impressive is the fact that you can use printed film to an eyemark or clear film to a predetermined length. And speeds are impressive. The film unwind is driven which adds to the speed and accuracy of film placement.

Cycle Speed: 16 cycles/min.*

Tooling Set-Up: #2171 #2187 #2200 #2208 #2227 #2325 8 Trays 7 Trays 6 Trays 6 Trays 6 Trays 3 Trays *Approximate based upon operators and meals being packaged.

A few other nice features:

  • Integrated network connection
  • Detector for end of roll as well as a break in the film
  • Structure manufactured from AISI Type 304 Stainless
  • Software adaptable for additional peripherals i.e.: tray destacker, doser, labelers, and much more.
  • Pneumatic system by Festo

Your cookie settings are blocking this video!

Please accept cookies to view this video content.


Options

  • MAP
  • SKIN
  • Additional infeed conveyor
  • Tray destacker
  • Doser
  • Labelers
  • Additional outfeed conveyor
  • 400 Volt 3 Phase + N - 32 Amps

Specifications

Length/Width/Height: 230” x 60” x 82” (5,826 x 1,540 x 2,057 mm)
Weight: 5,700 lbs. (2,600 Kgs.)
Pneumatics: 125 g/min – 85 PSI (480 l/min – 6 bar )
Electrical: 220-240 Volt 3 Phase - 40 Amps
