FP560 - Manual L-Bar Sealer

  • Manual sealing system.
  • Output of up to 800 packs/hour
  • Ideal for packaging small or medium-sized products (maximum pack height: 9" (230mm)
  • Teflon-coated sealing blade.
  • Automatic pack discharge by means of a motorized conveyor.
  • The FP560 can be supplied with or without the T450 shrink tunnel.
  • Alphanumeric LCD control panel with microprocessor card and solid state relays that allow a simple and precise control of all the machine operations, such as:
  • machine status
  • number of packs produced by an electronic pack counter
  • adjustment of the sealing temperature
  • pack discharge speed
  • delay in the opening of the sealing arm
  • programing of 6 different work programs
  • troubleshooting

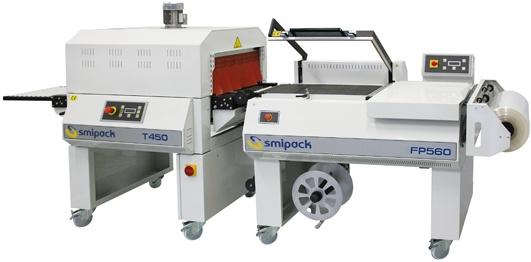

*Shown with optional Shrink Tunnel in picture.


Do you need help choosing a tray sealer?
Guide me

Typical Applications

Shrinkwrapping (Lbar and tunnel) is used to package almost any product to prevent tampering, to hold them together, to package more than 1 item together for specials or display, to keep the product clean, to extend shelf life minimally and to protect the product. Products include, media, printed materials, industrial goods of any shape and food products with the optional inox working plate.

The L-Bar alone can be used to pack loosely into polyethylene soft items such as magazines, clothing like bathrobes for hotels or T-Shirts.

Options

  • Stainless steel packaging plate
  • Support for double reel
  • Film waste winding device
  • Can be supplied with or without the T450 shrink tunnel.
  • Film that can be used: PVC, Polyolefins and Polyethylene

Specifications

  • Maximum product height: 9" (230 mm)
  • Seal bar dimensions: **22" x 16.9" (560 x 430 mm)
  • Output: up to 13 wraps/ minute
  • Voltage: 220V - 240V, 1PH, 60 Hz
  • Machine dimensions: 79.1" x 31" x 41" (2010 x 790 x 1050 mm)
  • Weight: 283 lbs (129 kg)
  • Maximum width of roll: 23.6” (600 mm) **On products reaching maximum size, samples are required for testing. *Pictured with T450 Shrink Tunnel
