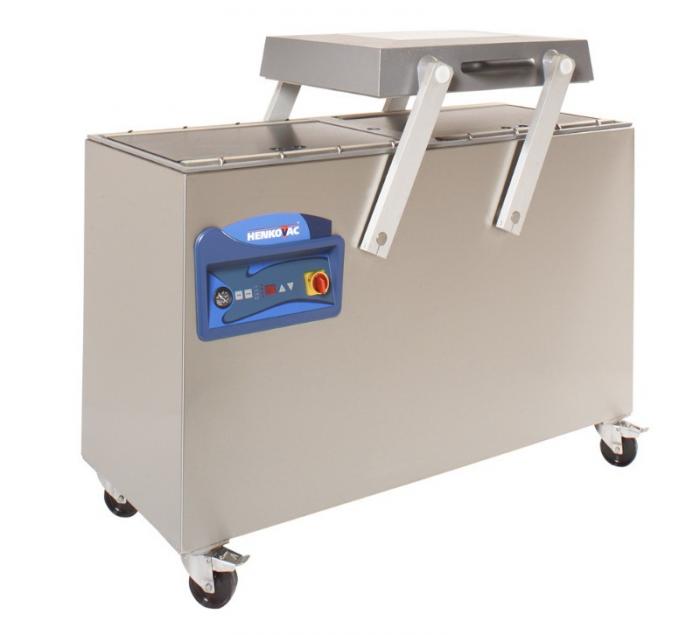

Double D6 - Aluminum Vacuum Chamber

The D6 is a heavy duty, swing lid, aluminum vacuum chamber. It is perfect for food and non-food product packaging.

CHAMBER DIMENSIONS: 24" x 20.1" x 7.1" (610 x 510 x 180 mm) SEAL LENGTH: 4x 23.6" (4 x 600 mm)

Standard with double seal. Standard with 40m³ vacuum pump. 10 programs

  • Flexibility in volume production.
  • All double chamber machines can be equipped with a semi-automatic or automatic cover movement and an external pump.

Do you need help choosing a tray sealer?
Guide me

Typical Applications

Popular in butcher shops, restaurants, hotel kitchens, hospitals, caterers and the food processing industry.

Options

  • Sensor and modulated air return control
  • Trim seal
  • Seal 1-2
  • Gas flush: For packing fragile products, presentation and extending the shelf life of specific products.
  • Vacuum pump: 100 m³

Specifications

  • Chamber dimensions: 24" x 20.1" x 7.1" (610 x 510 x 180 mm)
  • Seal length: 4 x 23.6" (4 x 600 mm)
  • Cycle time*: 20-40 sec.
  • Voltage: 220V-3PH-60 Hz
  • Vacuum pump: 40m³
  • Machine dimensions: 53" x 28.4" x 41" (1345 x 720 x 1040 mm)
  • UL/CSA approved

*Cycle time is influenced by many factors such as: product size and type, vacuum level and whether or not the product is being gas flushed.
