Mobile M1 - Vacuum Chamber

The Mobile M1 Vacuum Chamber is a stainless steel, midsize, floor standing model with domed plexi-lid and two seal-bars ideal for multiple smaller packages.

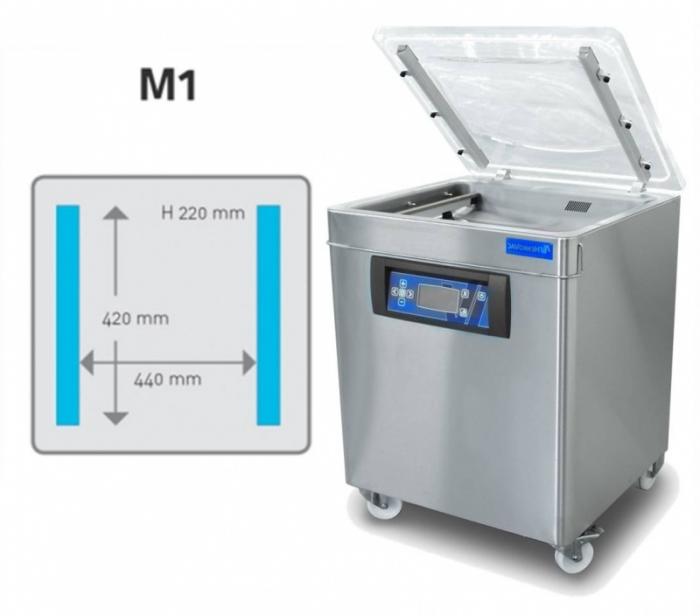

USEFUL CHAMBER DIMENSIONS:
17.3" x 16.5" x 8.6" (440 x 420 x 220 mm) SEAL LENGTH: 2 x 16.5" (2 x 420 mm)

Standard with double seal. Standard with 21m³ vacuum pump.

Transparent lid for easy visibility of the product Easy to clean, round corners Sealbeams and silicone are easily removable

Choice of programming Option 1: 1 digital time program Option 2: 10 programs with sensor control and soft air return


Do you need help choosing a tray sealer?
Guide me

Typical Applications

Popular in butcher shops, restaurants, hotel kitchens, hospitals, caterers and the food processing industry.

Options

  • 2 filler plates (each 20mm)
  • Spare parts kit
  • Digital Time Control OR 10 programs with optional Sensor and/or Softair Control
  • Double, 1-2 OR Trim sealing
  • Vacuum Pump capacity: 40 m³
  • Intuitive digital control unit, which automatically detects the optimum vacuum for products with a high moisture content.
  • Gasflush: For packing fragile products, presentation and extending the shelf life of specific products.

Specifications

  • Useful Chamber dimensions: 17.3" x 16.5" x 8.6" (440 x 420 x 220 mm)
  • Seal length: 2 x 16.5" (2 x 420 mm)
  • Seal Configuration: S&S (Side to Side)
  • Cycle time*: 20-40 sec.
  • Voltage: 220/230-1-60Hz
  • Vacuum pump: 21m³
  • Machine dimensions: 25.9" x 24.2" x 40.1" (655 x 615 x 1020 mm)
  • UL/CSA approved

*Cycle time is influenced by many factors such as product size and type, vacuum level and whether or not the product is being gas flushed.
