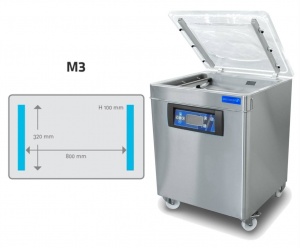

Mobile M3 - Vacuum Chamber
The Mobile M3 Vacuum Chamber is a stainless steel, midsize, floor standing model with domed plexi-lid and two seal-bars ideal for multiple smaller packages. Made for long narrow products such as fish.
USEFUL CHAMBER DIMENSIONS: 35.4" x 13" x 3.9" (900 x 330 x 100 mm) SEAL LENGTH: 2 x 12.6" (2 x 320mm) Distance between seal bars: 31.5" (800mm)
Standard with double seal or trim seal Standard with 40m³ vacuum pump.
Transparent lid for easy visibility of the product Easy to clean, round corners Sealbeams and silicone are easily removable
Choice of programming Option 1: 1 digital time program Option 2: 10 programs with optional sensor control and soft air return
Typical Applications
Popular in butcher shops, restaurants, hotel kitchens, hospitals, caterers and the food processing industry.
Options
- 2 filler plates (each 20mm)
- Spare parts kit
- Double seal or Trim seal
- Digital Time Control OR 10 program with optional Sensor and/or Softair Control
- Sensor (only with 10 programs)
- Soft air (only with 10 programs)
- Vacuum Pump capacity: 63m³
- Intuitive digital control unit, which automatically detects the optimum vacuum for products with a high moisture content.
- Gasflush: For packing fragile products, presentation and extending the shelf life of specific products.
Specifications
- Useful chamber dimensions: 35.4" x 13" x 3.9" (900 x 330 x 100 mm)
- Seal length: 2 x 12.6" (2 x 320mm)
- Seal configuration: S&S (side by side)
- Cycle time: 20-25 seconds
- Voltage: 220-230 - 1 - 60Hz
- Vacuum pump: 21m³
- Machine dimensions: 39" x 20.7" x 40.1" (990 x 530 x 1020 mm)
- UL/CSA approved
