Information

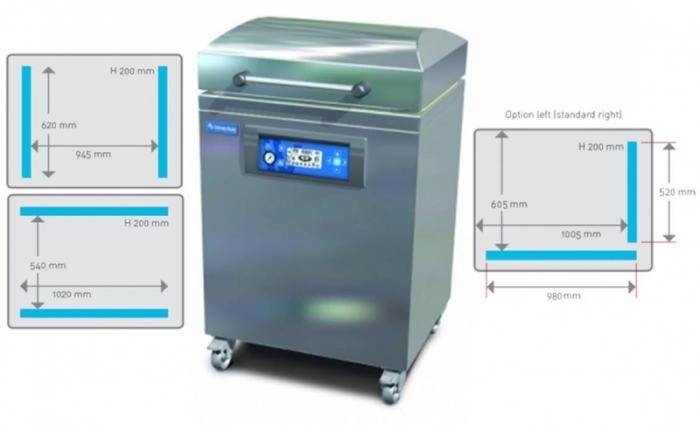

The M6 is an extra large version of the M5 heavy duty vacuum chamber with stainless steel cover and flat working surface designed for very large bags.
CHAMBER DIMENSIONS: 41.1" x 23.6" x 8.3" (1044 x 600 x 210 mm) SEAL LENGTH: 3 options L&S 1 sealbar 40.2" (1020mm) and 1 sealbar 9.7" (500mm) S&S 2 sealbars 20.5" (520mm) L&L 2 sealbars 40.2" (1020mm) Standard with double seal or trim seal Standard with 100m³ vacuum pump.
Stainless steel cover Easy to clean, round corners Sealbeams and silicone are easily removable 10 Programs
Typical Applications
Popular in butcher shops, restaurants, hotel kitchens, hospitals, caterers and the food processing industry. The stainless steel cover is more resistant than the transparent lids and allows for more industrial, heavy duty applications that persist for long periods of time.
Options
- Seal options: Double, trim OR 1-2 seal
- Gas flush: For packing fragile products, presentation and extending the shelf life of specific products.
- Filler plates 25mm
- Spare parts kit
How to use
Specifications
- Chamber Dimensions: 41.1" x 23.6" x 8.3" (1044 x 600 x 210 mm)
- Seal Lengths (3 Options):
1 sealbar 40.1" (1020mm) and 1 sealbar 20.4" (520mm)
2 sealbars 20.4" (2 x 520mm)
2 sealbars 40.1" (1020mm) - Cycle Time*: 25-35 sec.
- Voltage: 220-3-60Hz
- Pump capacity: 100 m³
- Machine Dimensions: 44.9" x 34.4" x 45.7" (1140 x 875 x 1160 mm)
- UL/CSA approved
*Cycle time is influenced by many factors such as: product size and type, vacuum level and whether or not the product is being gas flushed.
